HH carabiner

[Leroy]

V



[Merle Nelson]

Steel



[southsoundtree]

The steel will chew up the aluminum. OEM.



[Richard Mumford-yoyoman]

[ QUOTE ]
Does anyone use an aluminum carabiner with the HH or do you have to use the steel one? Thanks.

[/ QUOTE ]
I agree, it needs to be steel.
Better yet, replace it with a steel shackle you will never go back to that carabiner. IMO



[chris_girard]

Steel all the way.



[MickCPitlick]

I know others have asked: source and model for the shackle.

I just blindly went out and got a 1/2" "anchor" shackle. The mouth was too narrow and the pin was too fat! Also, Someone mentioned 20,000 lb WLL, I only see 6000 in the data sheets.

So what's the part number? (please)



[Richard Mumford-yoyoman]

[ QUOTE ]
I know others have asked: source and model for the shackle.

I just blindly went out and got a 1/2" "anchor" shackle. The mouth was too narrow and the pin was too fat! Also, Someone mentioned 20,000 lb WLL, I only see 6000 in the data sheets.

So what's the part number? (please)

[/ QUOTE ]

1/2” - 15,000 lb Tensile

This shackle In use



[William_Piper]

you want a 1/2" SS Bow

Bow shackle


[Note: edited to correct the link...TD]



[surveyor]

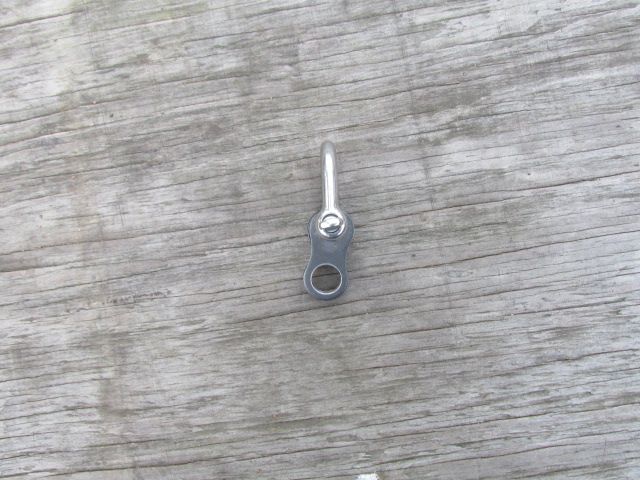

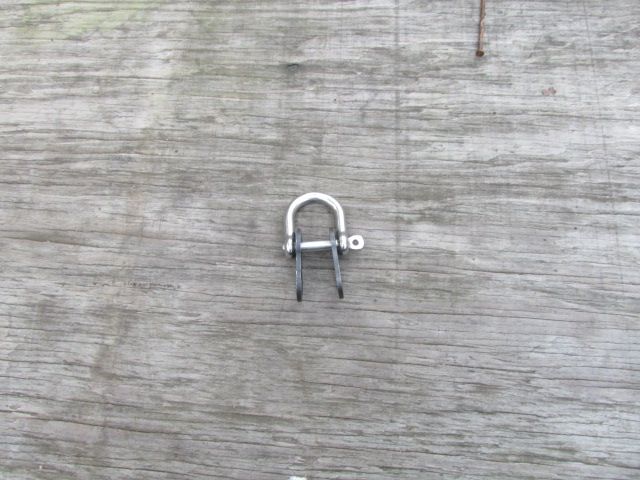

Does anyone use a shackle like this to tend the Hithhiker carabiner?

It seems this may make a good attach point for self tending the HH also on a doubled rope.
IMG_0486_zps8a4b6af8.jpg.html]

IMG_0487_zps26b92cab.jpg.html]



[oceans]

Surveyor, do you own stock in a large, privately held company that produces chain links!?!?!

Thanks of the continuing innovation. Have you tried this and found it effective? It looks like a great tending point in SRT as well...



[surveyor]

Hey Eric, Some times it seems like I do! I have quite a collection and continue to work with various OAR configurations. I think the shackle would tend the biner well SRT with the HH and be strong enough for DRT also.

Levi, sadly I do not have access to a Hitchhiker to experiment with or post a picture with the above shackle. The spacing is right I believe, based on the dimensions of the HH, as the shackle is 1-1/8" wide between the eyes.

If anyone has a used HH system they would be willing to let me experiment with, I would send it back with the above tending attach point shackle as a way of thanks.

Gordon



[surveyor]

Thanks Tom D. for your offer of the early HH, I will take you up on that!
Wishing you well on your new position.

Gordon



[Tom Dunlap]

YW...but the HH is in Drift so it'll surface some other time.



[pctree]

Gordon, pm me your address and Ill loan you one.



[surveyor]

Thanks very much Paul.



[surveyor]

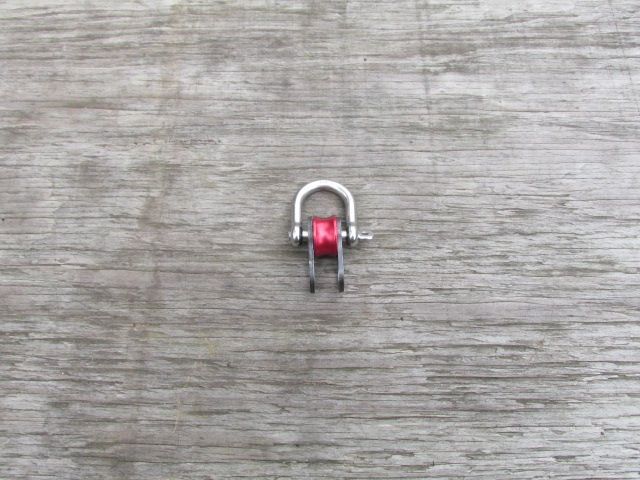

I'm thinking also that if I add the right size roller, fit within the HH, next to the biner (or shackle), that it would aid to ease the rope as slack is tended upwards,
IMG_0488_zps5616e755.jpg.html]



[Adam_P]

Gordon, here's a pic of how I'm using my HH. Someone posted the setup a while ago and it tends like a dream. Maybe this will help you in your travels.

I'm very interested your link/shackle drt setup!



[JontreeHI]

That's the one Adam. Isn't it smooth?
Only drawback is it's a bit cumbersome if you want to unhook to set a redirect. But so smooth



[Adam_P]

Yup! Great idea man.

I agree you definitely have to make sure you don't drop the pulley.

That pinto is getting chewed up a bit from the knurled gate on the oxan. I'll probably grab an isc micro to use in place of the pinto.



[JontreeHI]

I didn't think of it, just posted that (low-quality) pic. I can't remember who was the first. Was that the most recent tips and tricks thread?
