Creating Master Deluxe Bridge

[countryboypa31]

I saw some guys talking about this in a previous thread and couldn't find one of its own so i made one. How did you guys make your own bridge for the MD? Which connection points did you find were most comfortable? I started on a Versatile, and bought the MD when i got my own, but i do miss the floating bridge from time to time. Thanks a lot guys



[NickfromWI]

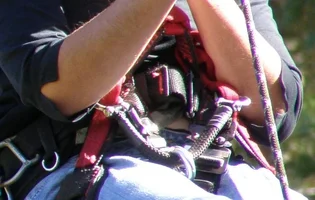

I make ones that look like this...



[rfwoodvt]

Nick, that looks like a brummel on each end....is it?

I have a pro-master from 2003, any suggestions on a bridge for that?



[NickfromWI]

Yes, a locking brummell on each end.

With the shackles to connect to, this bridge would work with any harness.

love
nick



[countryboypa31]

I'm prob getting to fussy but what shackles do you use to connect it to the saddle? Good picture thanks a lot



[NickfromWI]

Not too fussy at all. These are the details that make you happier, safer, and more efficient in the tree.

I use: http://www.bosunsupplies.com/products2.cfm?product=S0116-NS

Honestly, I don't remember what size I use...but this gives you the idea.

love
nick



[countryboypa31]

Thanks i asked cause i saw one of the twisted shackles says it "DOES NOT meet ANSI standards for arborist equipment" as according to wesspur http://www.wesspur.com/Carabiners/clips-links.html

But when i checked the sherrill magazine it doesn't note that. Are they different or any other reason i should be concerned?



[rfwoodvt]

My understanding is that the shackle has to meet the same 5000# tensile rating AND the pin needs to have some mechanism to Lock it shut.

Some of the Witchard Shackles I have used have a detent lock on the pin so that when you tighten it down it cannot back out.

You should corroborate this before trying it, but I read somewhere that some of the permanant Locktite type products can be used to make shackles & bolts compliant. Again, you ought to double check that before trying it though.



[countryboypa31]

Will take note, thanks.



[Magnum783]

I have a master deluxe and I made my bridge form a short a bit or ultra tech. I used two BFII clevis to attach it all to the saddle. I did have to play with it a bit to find the right spot but once I did I really like it.
Jared



[WWCTreeCrew]

I went ahead and bought the BFII shackles and short BFII bridge from sherrill, so I could be confident that it all met the weight requirements. I love my set up. Here is a picture.



[countryboypa31]

That looks like a real nice set up, def going to have to play with that over the winter months. Thanks guys



[Stumper]

Finally remembered to post a pic of mine.



[NickfromWI]

Stumper, is that yalex/tenex or is it a high-mod line?

love
nick



[Stumper]

Tenex



[countryboypa31]

[ QUOTE ]
My understanding is that the shackle has to meet the same 5000# tensile rating AND the pin needs to have some mechanism to Lock it shut.

Some of the Witchard Shackles I have used have a detent lock on the pin so that when you tighten it down it cannot back out.

You should corroborate this before trying it, but I read somewhere that some of the permanant Locktite type products can be used to make shackles & bolts compliant. Again, you ought to double check that before trying it though.

[/ QUOTE ]

I checked with wesspur as to why theirs does not meet ansi standards and they said because through a lot of vibration it could "potentially" become unlocked, but if you only add a small zip-tie or something to keep the pin from un-turning then its fine and meets all standards. Guess its incase ocia (don't know spelling) comes on site. Locktite will work just fine but is not visible if say ocia did come on site.

In other words its a o kay, its just a looks thing to cover your butt from getting a hefty fine.

I know its a late post but i thought it was worthwhile if anyone had any questions about it. Don't wanna keep anyone from buying it from wesspur, i love those guys. They have been a big help for me



[Marc_H]

[ QUOTE ]
I went ahead and bought the BFII shackles and short BFII bridge from sherrill, so I could be confident that it all met the weight requirements. I love my set up. Here is a picture.

[/ QUOTE ]

I have been thinking about doing the same thing. I'll have to give it a try now.



[countryboypa31]

Yep thats what i did, should have arrived today, now if only i was at home!!! Ohh well i'll get it when i get back
