I just received my new Rope Guide yesterday and like what I see. If you are familiar with the original, then I will try to share some of the new changes with you.

The first change I noticed was that the pulley is new. It is now a sealed ball bearing with thin cheek plates. It is said to be less likely to turn on its side during use.

The next change is one of safety- the retriever strap is no longer mounted to the cam. It is now on the underside of the device itself. This way, it cannot turn 90* to the cam and prevent it from working properly.

Third, there is now a rubber band (thick one) attached to the cam to keep tension on the rope. Another good safety precaution.

It seems to work the same as the original only less likely to have any little flaws during the climb. Well done Hubert!

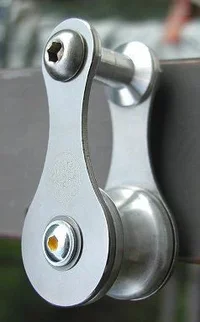

Here's a picture of the pulley. I intend to splice a prusik loop directly into it to make an only rope version of the rope-guide.

Sergio


Attachments

  • 10777-artpulley.webp
    11.7 KB · Views: 202
I've seen that mini block before but I do not remember where. It appears to be a good improvment. Mark I use a hitch rope guide because of the limitations of the cam. The inprovments sound like it will work better on smaller stems.
