Highlead logging. Yes, sir. There's, actually a number of ways you can go about it, but no matter how it's done, it all boils down to getting the "lift". In this case utilizing the capstan winch for power,and a spar/tree for the lift.

I used the same exact setup many times when clearing right of way, only difference was, for the most part we'd use the crew truck for the power. One reach was over 600 feet below the truck road and we landed the brush right behind the chipper.

[ QUOTE ]


I used the same exact setup many times when clearing right of way, only difference was, for the most part we'd use the crew truck for the power. One reach was over 600 feet below the truck road and we landed the brush right behind the chipper.

[/ QUOTE ]

I've always called it using a 'Gin pole'.

I've used this setup many time too. Most often pulling with a pickup truck but often using a remote controlled stump grinder. Often we use pine trees and guy them. I'd love to have a gas powered capstan winch.

[ QUOTE ]
Old concept in the northwest, works great. Now you're logging!

[/ QUOTE ]

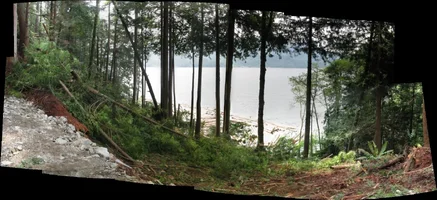

I'm not sure how many times one of us laughed and said "Wow! Now we're logging!" after we started using this setup. We initally looked at this job and were stumped as how to get all the brush up. This worked really well. Here's the view we cleared out. There was no view whatsoever when we started.


Attachments

  • 85302-pano.webp
    190.4 KB · Views: 171
By the lift you get from a spar you can continue moving your work well beyound it, even uphill. It's easy enough to do so long as there's suitable trees where you wish the work to be directed. I once won a bet with a guy doing this.

The spar for our highlead was a Douglas fir, and about 30 feet below the truck road. The block was set about 80 feet and the bulline directed to the power implement through another block. The slope was steep and we had a lot of brush to move. On the first turn our engineer, Tom Clifton, stopped pulling when the load came up to the base of the spar. He said, "That's as far as it's going, Jer. Now we're going have to go down and drag it the rest of the way up the hill. This rigging scheme of yours isn't going to save us all that much work.

Tom was imagining back breaking drugery and further on he was telling me my idea had failed in getting the brush up to the road. All the while he was telling me that I was holding a line I just set in an alder tree over the truck road. He seen the rope, but hadn't a clue what it was for.

I stepped off the road edge and slide on my buttocks down to the fir and snapped the end of the line from the alder to the bulline. "Click" I went back up to the hill. Tom asked me, "Now what is that rope going to do? We're still going to have to do some grunt work. Admit, Jer. You screwed up on this one." Tom giggled with delight at the thought that I missed something in the details. He liked to do that. I told him, "I'll bet you, Tom, we can get all that brush up to the chipper, without having to pull or drag any of it by hand. A bright spark lit in Tom's eye and he said, You're, on, Jer! Oh, boy, this is going to be good." Tom was rubbing his hands and smiling from ear to ear."

The system was all set and I told Tom, "Take up on the bulline! Tom come back, "Take up on the bulline? Yes, that's what I said, Tom. And I said it again. "Take up the bulline!" Tom come back again, "Jer, all that's going to do is haul the brush up the tree. Yeah, that's right, Tom. Now do it! And don't stop until I tell you to!"

And so, with question, wonder and much doubt, Tom enguaged the clutch and began lifting the brush. And as it went ever higher up that fir tree the line coming from the alder become ever shorter. "Stop'er right there!" I yelled out. I then drew the slack from the line in the alder and made it fast. "Now, start slacking the bulline, Tom."

This is where Tom realized he lost the bet. As Tom slacked the bulline the "tag line" from the alder drew the works over the truck road and laid the brush behind the chipper. Even before it got that far Tom was in death throws agonizing over the knowledge of having lost the bet.

In spite of the contentions in the story Tom and I were really best of friends. He just didn't know, "You don't bet on another mans game". The rest of that day went without anyone having to drag a stick of brush.

Took a few edits to clean this story up.

Nice story GB. I bet you have written a few books!

A few years ago we got sent to remove a large cottonwood at the bottom of a long steep pristinely manicured lawn.

The boss had bid the job that we would roll it up the hill with ball carts. After one load by hand we realized that that would kill us quickly. I set a gin pole and figured on using the truck as a power source. The problem was we only had a short length of driveway and a long long slope. For a couple of loads, we stopped, reversed, and reset. I had a nice eureka moment when I realized that we could put reverse MA on the truck and we could trade out some power for speed and distance. This was done by running the line through a pulley on the hitch and than tying it back to the base of the gin pole. Somebody still had to guide the ball carts up the hill but they did it virtually at a skip, the truck only going half the distance of the log. The line virtually slung the ball cart into the roll up trailer waiting at the top of the hill.

Oh, that's great the way your job turned out, bing. I can just see it. Scratching your head and mulling over the thought of having to pack all that weight up the hill. Necessity is the mutha of invention. Then the light comes on. You figured a way to save yourself a lot of work.

And you know? That's 90% of this business. Great story.

Those ideas and more would make a good little reference book called Thinking Outside the Canopy

Good story, Jerry! I've done the same. You used the alder as a drift/transfer line. I've done similar, and have also rigged brush up in the air and onto a speedline...or just have the line slack on the ground, but high tied, then tension it (via truck, GRCS, or capstan winch) with the turn of brush on the line. As the line comes taut, the brush is lifted, then finally zip lines out.
Gord, I've had a Simpson capstan winch for years now..a lot cheaper than that one of yours...and I run it with a muffler ported 044...Now there's some power. I also was the first one to use it like a mini GRCS. I've lifted hung trees with it, then lowered them. Had to modify the fair lead to allow this technique to work properly. And we once swung and lifted an alder off a house with it...Couldn't have done that without the mod either.

The times that I've use the Simpson to yard uphill, we have not had suitable high ties, so I've had to rig a main/tight line, and run the pull line on it, attached with a block, and a hold back/haulback line. Rigging intensive but it worked, just got the brush off the ground enough to get to the top of the bank.

Roger, I think he's just swinging the load as in this attachment.
Lock off the pink rope and lower the blue rope.


Attachments

  • 85394-swingjob.webp
    8.6 KB · Views: 167
