Big Blue!

[Tom Dunlap]

When I was in Ann Arbor last week I noticed a construction site with three cranes working.

Is there any doubt which campus they're working on?



[Tom Dunlap]

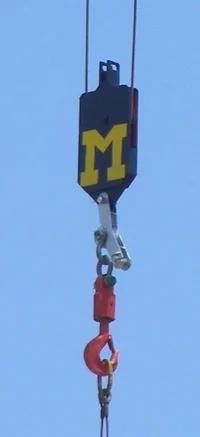

CAn someone explain the connection plate between the sheave and the shackles?



[Tom Dunlap]

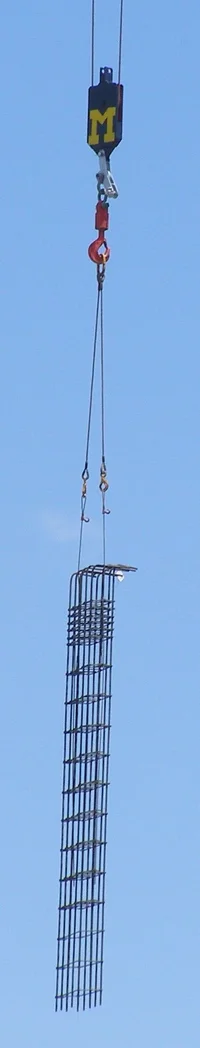

Working



[TreeCo]

[ QUOTE ]
CAn someone explain the connection plate between the sheave and the shackles?

[/ QUOTE ]

My guess is its a type of 'spreader' for carrying loads that don't rotate. The center connection goes on the sheave and the two sides accept the slings.



[TMW]

Not sure, but it looks like it could be an attachment for multi part lifting. The right side would attache to another block increasing mechanical advantage.



[Jamin_Mayer]

Go Michigan!

Sorry folks. I was born in Saginaw and my whole family is from there... I digress...



[BostonBull]

Looks like its for parting the line.



[Tom Dunlap]

[ QUOTE ]
Go Michigan!

Sorry folks. I was born in Saginaw and my whole family is from there... I digress...

[/ QUOTE ]

Actually, YOU are ON topic

When I was in Ann Arbor I didn't even notice the 'M' on the crane. The person that I was with in AA, a Michigan grad, pointed it out to me.
