I've been told a clinometer is a good way. I'm about to do my first through cable job and have been pondering this question a lot lately.
Favorite methods for through-cable hole alignment
- Thread starter BrianGehan
- Start date
- Location
- Retired in Minneapolis
Ahhhh...good one!
Look on your phone. You might have a level that could be used
Besides the level you could use the compass to take a bearing on the second hole
Slip a dowel or through bolt in the first hole to set the level then sight across to the second
Look on your phone. You might have a level that could be used
Besides the level you could use the compass to take a bearing on the second hole
Slip a dowel or through bolt in the first hole to set the level then sight across to the second
- Location
- Midcoast Maine
I just tried a small magnetic torpedo level stuck onto a cheap metal laser pointer. I had to work a few different long spans on a wide spreading multi-stem red maple. Worked pretty good.
treevet
Branched out member
- Location
- Cincinnati, Ohio
Don't see the need for perfect alignment. Anchor will be stressed laterally no matter how good you align it.

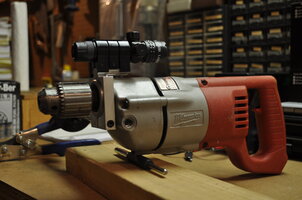

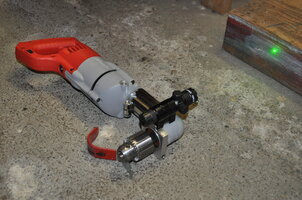

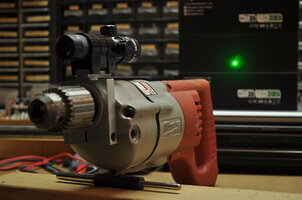

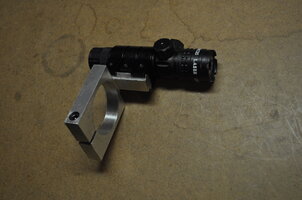

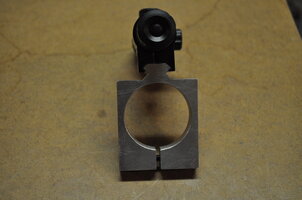

Laser dot mounted on a drill. Custom made mount mounted on a Milwaukee drill works on straight and right angle drill heads. Laser is $20 green dot specified as less than 5 mw. No problem in bright sunlight. I would get a 1 mw If I purchased another as the 5 is a little too strong.
Attachments
flushcut
Been here much more than a while
- Location
- Delavan, WI
Perfectly aligned? My eyeball.
I recall reading about a contraption that used an air drill and an apparatus that held the drill and line going to the opposite stem also with a drill holder thing a ma jig. Strap on the drill holder thingy loosely run the line and pull tight there by aligning the the drill holders. I don’t think I have seen it since. Maybe Jomo’s brain child it’s been a few years.
I recall reading about a contraption that used an air drill and an apparatus that held the drill and line going to the opposite stem also with a drill holder thing a ma jig. Strap on the drill holder thingy loosely run the line and pull tight there by aligning the the drill holders. I don’t think I have seen it since. Maybe Jomo’s brain child it’s been a few years.
evo
Been here much more than a while
- Location
- My Island, WA
I typically just a rope a little above the area to be drilled. This can serve a double purpose to tension the cable but I hold the drill bit under and sight parallel to the rope.
The issues I’ve had is brace rods above the union. Can’t see how a laser would help at all with that.
The issues I’ve had is brace rods above the union. Can’t see how a laser would help at all with that.
