M method with the zig zag

[Crazy_Jimmy]

I thought someone posted a picture of a cool way to stream line the m method with the zig zag . If anyone knows where I could find that picture for a co-worker , that would be awesome...



[oceans]

It was Tony. Follow me here...

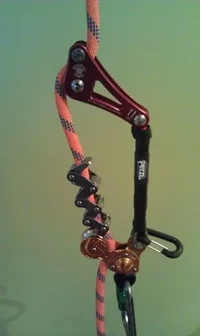

Place a Petzl fixie pulley (others may work?) over your climb line and put the pulley over the upper eye of the ZZ by straddling the eye with the two side plates. Capture the pulley and the upper eye with a single oval biner and rotate the biner gate up. Put your eye splice onto the biner and off you go. Hope it makes sense!



[oceans]

I found the post, but the pictures only show up as question marks. Maybe they were lost in the move...

http://www.treebuzz.com/forum/threads/zigzag.23894/page-3



[Steve Connally]

man I posted one but now I cant find it. I cant find it on my phone either. I'll try to get a pic tomorrow.



[Crazy_Jimmy]

I know i seen it on here a while back , probably both times lol.



[oceans]

Ok, use your imaginations here.



[Crazy_Jimmy]

I will tinker with it tomorrow when I see my co-worker , Im sure if I get my hands on it will figure something out.



[Hulk]

I just use one of the soft dog bones on bottom
The rock climbers anchor clips with two carabiners and strap I just remove the accessory carabiners put pulley like the fix in the pic works great with pulleys aver
And pinto,, natural crotch is horrible,,,, pulls the line out at an srt angle,,, problymost not that good for zag



[treevet]

I thought someone posted a picture of a cool way to stream line the m method with the zig zag . If anyone knows where I could find that picture for a co-worker , that would be awesome...

don't know what stream line means but I posted this a while back



[Crazy_Jimmy]

M method or V rig, I figured it out today thanks



[Howie65]

M method or V rig, I figured it out today thanks

May I ask you how your M-rig configuration looks now? Did you build it like proposed by oceans or did you even find another solution?
