    Looks great. What bearing did you use?

    Sent from my SM-G900V using Tapatalk

    TimBr likes this.
  2. papadirk

    papadirk Active Member

    Joined:
    Sep 16, 2015
    Messages:
    89
    Location:
    VT
    And what is your rope?

    Sent from my SM-G900V using Tapatalk

    TimBr likes this.
  3. Tuebor

    Tuebor Well-Known Member

    Joined:
    Dec 16, 2014
    Messages:
    574
    Location:
    Detroit
    Looks like JohnnyPro's lime and plumb colored Mammut Serenity.

  4. John anderton

    John anderton Member

    Joined:
    Mar 9, 2015
    Messages:
    20
    Location:
    Bolton
    Yes serenity, I've got some Sirius 500 which is off being spliced also , & the bearing is 6001 -2rs that was mentioned earlier ...


    Sent from my iPhone using Tapatalk

  5. papadirk

    papadirk Active Member

    Joined:
    Sep 16, 2015
    Messages:
    89
    Location:
    VT

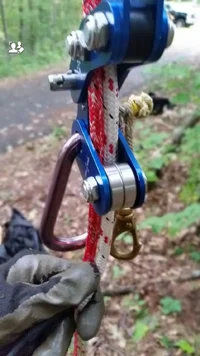

    I finally had a chance to modify my RR. The 6001-2RS 12x28x8 bearings were going to require resizing the RR pulley axle so I used the 99R8 R-Series Radial Bearings which fit right onto the axle. A couple of 1/2" ID bearing shims I found at my local True Value are between the bearings and the side plates. Current set up is using the baby bump fiction plate. It runs great with out any hoking of the two lines. Certainly an improvement over the HH set up I was using before.

    The ropes are 8mm Marlow Doublebraid. I was having trouble sourcing Sirius 500 and this seem to be a similar spec.

    I am looking forward to working with this a lot more.

    macswan, oceans, NE Tree and 4 others like this.
  6. DSMc

    DSMc Well-Known Member

    Joined:
    Nov 21, 2007
    Messages:
    1,626
    Location:
    Montana
    That is some seriously skinny rope!

    TimBr likes this.
  7. John anderton

    John anderton Member

    Joined:
    Mar 9, 2015
    Messages:
    20
    Location:
    Bolton
    Do you plan on using two foot ascenders ? & have you come across any rope shift issues when ascending.. ?Thanks


    Sent from my iPhone using Tapatalk

    TimBr likes this.
  8. papadirk

    papadirk Active Member

    Joined:
    Sep 16, 2015
    Messages:
    89
    Location:
    VT
    Yes I have been using 2 foot ascenders and yes I do experience some rope shift with an ascender on each rope. I have been thinking of getting a hand ascender like the
    Climbing Technology Quick Arbor Ascender that can grab both lines to see if that helps. John, sounds like you have experienced this as well. Any thoughts?

    TimBr likes this.
  9. John anderton

    John anderton Member

    Joined:
    Mar 9, 2015
    Messages:
    20
    Location:
    Bolton
    I can see its dependent upon your anchor set up , I've just got my Sirius 500 spliced & have the ring & thimble set up , I need some more time on this .. Will post when I know more , you can see from the Johnny pro video by fixing / weighting the ends it stops the shift ..


    Sent from my iPhone using Tapatalk

    TimBr likes this.
  10. oceans

    oceans Well-Known Member

    Joined:
    Nov 9, 2011
    Messages:
    3,411
    Location:
    MA, USA
    The best method to eliminate rope shift on ascent is to move both legs simultaneously, or to set up the initial access as a floating false with the two 8mm lines hung in an eye (prusik/butterfly/etc...) on an access line. Once aloft, relocate the TRT to the desired branch union.

    That, or focus gripping harder on both lines to limit slip when using the foot on the retrieval side. I always set the choke side as the Orange line on the right, and retrieval as the Black line on the left. I just focus on gripping a little harder when striding on the left foot.

    John anderton, papadirk and TimBr like this.
  11. oceans

    oceans Well-Known Member

    Joined:
    Nov 9, 2011
    Messages:
    3,411
    Location:
    MA, USA
    Just wanted to write quick here and say I tried the Twin Bearing mod. I'm not a huge fan since the sheave can allow each rope to run independently. When I set up a dual anchored configuration, I could keep the carabiner connection located where I wanted. It just drifted to center. Other than that, it feels pretty good. The solid flat sheave is the way to fly IMHO.

    John_KAYS and papadirk like this.
  12. papadirk

    papadirk Active Member

    Joined:
    Sep 16, 2015
    Messages:
    89
    Location:
    VT
    Sounds like you will have to go into the solid flat sheave business.

    Sent from my SM-G900V using Tapatalk

    SomethingWitty likes this.
  13. oceans

    oceans Well-Known Member

    Joined:
    Nov 9, 2011
    Messages:
    3,411
    Location:
    MA, USA
    Yyyyeeaahhhhh, if you could just come in on Saturday, that'd be ggrrrreaaat.

  14. Steve Connally

    Steve Connally Well-Known Member

    Joined:
    Mar 12, 2005
    Messages:
    5,259
    Location:
    Suffolk, Virginia
    One of my favorite movies!

    oceans and John_KAYS like this.
  15. John_KAYS

    John_KAYS Well-Known Member

    Joined:
    Jan 18, 2014
    Messages:
    1,448
    Location:
    Eastern PA
    That would be grrrreaat!


  16. oceans

    oceans Well-Known Member

    Joined:
    Nov 9, 2011
    Messages:
    3,411
    Location:
    MA, USA
    Haha! I forgot the "mmmm kay?". Too much.

  17. papadirk

    papadirk Active Member

    Joined:
    Sep 16, 2015
    Messages:
    89
    Location:
    VT
    Well it took three attempts but I finally made myself a solid flat sheave.

    This was cut from a piece of 1 1/4" round stock aluminum and the center drilled out to 5/8" to accept the bronze bushing from the original pulley.
    If the weather clears tomorrow I will give it a try.

    TimBr, macswan, oceans and 1 other person like this.
  18. oceans

    oceans Well-Known Member

    Joined:
    Nov 9, 2011
    Messages:
    3,411
    Location:
    MA, USA
    That's what you want, right there. I hope it works out. I recall the bronze bushing press fit into the aluminum isn't too tight. I've actually had a sheave drift to one side on my OG Blue RR. Unfortunately, I don't have the technology to drill that precisely on Center. If it's off a bit, you'll feel it on descent. My welded versions feel off until I finish hand filing them.

    TimBr likes this.
  19. SoftBankHawks

    SoftBankHawks Well-Known Member

    Joined:
    Jan 20, 2008
    Messages:
    545
    Location:
    Japan
    I had to change out Oceans flat pulley to the bearing Runner pulley since climbing on the Petzl Vector. The flat pulley made slack tending heavy and sluggish.
    I made a couple of anchors for the stitched eyes to retrieve through, will post em up later.
    Good work on your sheave, looking forward to see how it performs, Papadirk.

    TimBr likes this.
  20. oceans

    oceans Well-Known Member

    Joined:
    Nov 9, 2011
    Messages:
    3,411
    Location:
    MA, USA
    Surprised to hear that, Paul. I wonder if the diameter of yours came out larger than mine. Tolerances through the RR are brought out by different ropes, for sure. My personal sheave worked well with Vector.
