Compact Bulldog Bone

Discussion in 'Stationary Rope Technique-Half the rope, twice the' started by surveyor, Aug 16, 2014.

  1. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    Tends slack well, releases smoothly, and about 13-14 oz. Midline attachable.



    It has been suggested that I edit this first post to show the current state of the Bones, so here goes.
    The standard compact Bulldog Bone comes with three interchangeable bollards on the top arm that can be interchanged with tools and a new SS cotter pin. Here is an excellent video that John has made of this standard Bone.

    I also make a compact adjustable Bone which uses a SS 10-32 machine screw to move the bollard in the top arm of the Bone to adjust the gap where the rope is installed. This bollard is held from rotating, so it wears faster than the standard Bone bollard, but replacement bollards and spines can be obtained from me if desired (the spine being the part that connects the top arm to the bottom arm) I should mention that a Rock Exotica nano swivel can be installed directly on either Bone, replacing the teardrop attach point at the bottom arm.
    [​IMG]

    I also make a lanyard adjuster called the BOLA, which is shown here in another video made by John!

    Last edited: Jun 7, 2017
    TimBr, JeffGu, Overwatch and 6 others like this.
  2. macswan

    macswan Well-Known Member

    Joined:
    Nov 10, 2011
    Messages:
    3,219
    Location:
    Champlain Valley, VT
    That looks great, do you have people trying them out yet?

  3. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    Thanks. No, it is brand new, one of a kind.

    TimBr likes this.
  4. Tom Dunlap

    Tom Dunlap Longest registered member

    Joined:
    Jun 1, 2001
    Messages:
    14,824
    Location:
    Retired in Minneapolis
    You keep coming up with cleverer and cleverer configurations!

    TimBr likes this.
  5. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    Thanks Tom, I do find inspiration from the other devices and inventors, and the encouragement of others, many on this board.

    TimBr likes this.
  6. Paul Hedderly

    Paul Hedderly Active Member

    Joined:
    Apr 2, 2014
    Messages:
    153
    The question for me is... is the Oar history now?

  7. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    The OAR is still around.

  8. joezilla11

    joezilla11 Active Member

    Joined:
    Sep 20, 2013
    Messages:
    334
    Location:
    Ohio
    I'm curious are there any plans for production or getting it out to guys? I appreciate u sharing but it makes a guy want one!

    TimBr likes this.
  9. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    At this point it is untested. Time will tell. If it is well received and reliable, then we'll talk.

  10. Paul Hedderly

    Paul Hedderly Active Member

    Joined:
    Apr 2, 2014
    Messages:
    153
    How does it compare with the OAR so far?

    TimBr and scottsawman like this.
  11. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    Well, the two arm OAR self advances DdRT. The Bulldog Bone tends slack better without an added pulley and is more of a SRT device, although it works fine DdRT as long as the standing part of the line is clipped into the bridge, but you have to advance and then manually take up slack. At 12 oz. the Bulldog Bone is about 10 oz. lighter than the three arm OAR. The Bulldog Bone also does not use rollers, however a small 1/2 inch roller can be added to the top arm to make it a bit grippier.

    TylerHoffman likes this.
  12. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC

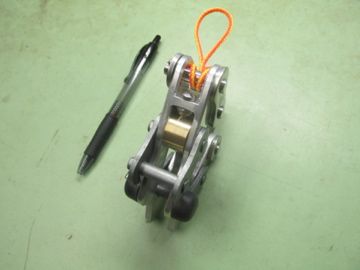

    OK, I have added a swivel lock link to the upper arm of the Bulldog Bone. I also moved the swivel link 1/8" closer to the upper pivot and added a 5/8" roller (which can be swapped for a 3/4" roller or a 1/2" roller to add slightly more or less grip). here is a picture of the latest Bone in its collapsed mode, notice the size of the bone in relation to the carabiner.

    [​IMG]

    macswan likes this.
  13. Paul Hedderly

    Paul Hedderly Active Member

    Joined:
    Apr 2, 2014
    Messages:
    153
    Very compact. Is there space to DdRT and O'rig it?

    PS Are you needing testers?

    Last edited: Aug 27, 2014
  14. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    I have used it both DdRT and in an O rig configuration. It is a bit tight but it does work. It also will advance as a three to one set-up on a single line.

    Because of my time and expense involved, I have been considering the idea of a rent to try/own the Bulldog Bone, along with a signed disclaimer.

    Crimsonking likes this.
  15. macswan

    macswan Well-Known Member

    Joined:
    Nov 10, 2011
    Messages:
    3,219
    Location:
    Champlain Valley, VT
    I have been using the Bone for the last week, and it is really fantastic. It stands up next to the rope runner. I was able to find the sweet spot for descent much faster. Hooked to a chest tether it tends just as well on ascent. And it is by far the easiest friction device of any kind (even hitches) to get on and off the rope. I have been enjoying it immensely. The size is great. I am definitely still dialing it in. But I like it just as much as my rope runner. They each have there own idiosyncrasies. We have another mechanical friction device! Thank you surveyor.

  16. surveyor

    surveyor Well-Known Member

    Joined:
    Aug 6, 2010
    Messages:
    1,112
    Location:
    NC
    Thanks Mac for the review.

    TimBr likes this.
  17. macswan

    macswan Well-Known Member

    Joined:
    Nov 10, 2011
    Messages:
    3,219
    Location:
    Champlain Valley, VT


    Here's a short vid showing how EASY it is to get the Bone off an on rope.

    It took me forever to figure out how to embed this thing, holy crow. Hats off to all you actual video makers.

    TimBr and TylerHoffman like this.
  18. dogwood

    dogwood Active Member

    Joined:
    Nov 4, 2013
    Messages:
    238
    Location:
    Garner, NC
    Gosh darn! I'd love to give that thing a try!

    Ryan Shaw likes this.
  19. yoyoman

    yoyoman Well-Known Member

    Joined:
    Oct 4, 2012
    Messages:
    2,145
    Location:
    Atlanta GA
    Gordon,
    I like this design, good use of the links.I think it is much more versatile than the OAR design which basically consisted of 3 Bends. your new design has a bend followed by a progressive pinch similar to the Rope runner.
    one word of caution, and this applies to your device as well as the Rope runner and to some extent others. the top control arm is quite large, if you slip or inadvertently put pressure on that top arm you go for a fast slide. as I mentioned this goes for other similar devices but the bigger that arm gets the more likely it is to happen.
    All said it looks great!

  20. yoyoman

    yoyoman Well-Known Member

    Joined:
    Oct 4, 2012
    Messages:
    2,145
    Location:
    Atlanta GA
    maybe it's just my phone, but when I watch the video its just voice and a black screen.
